le jlwffre

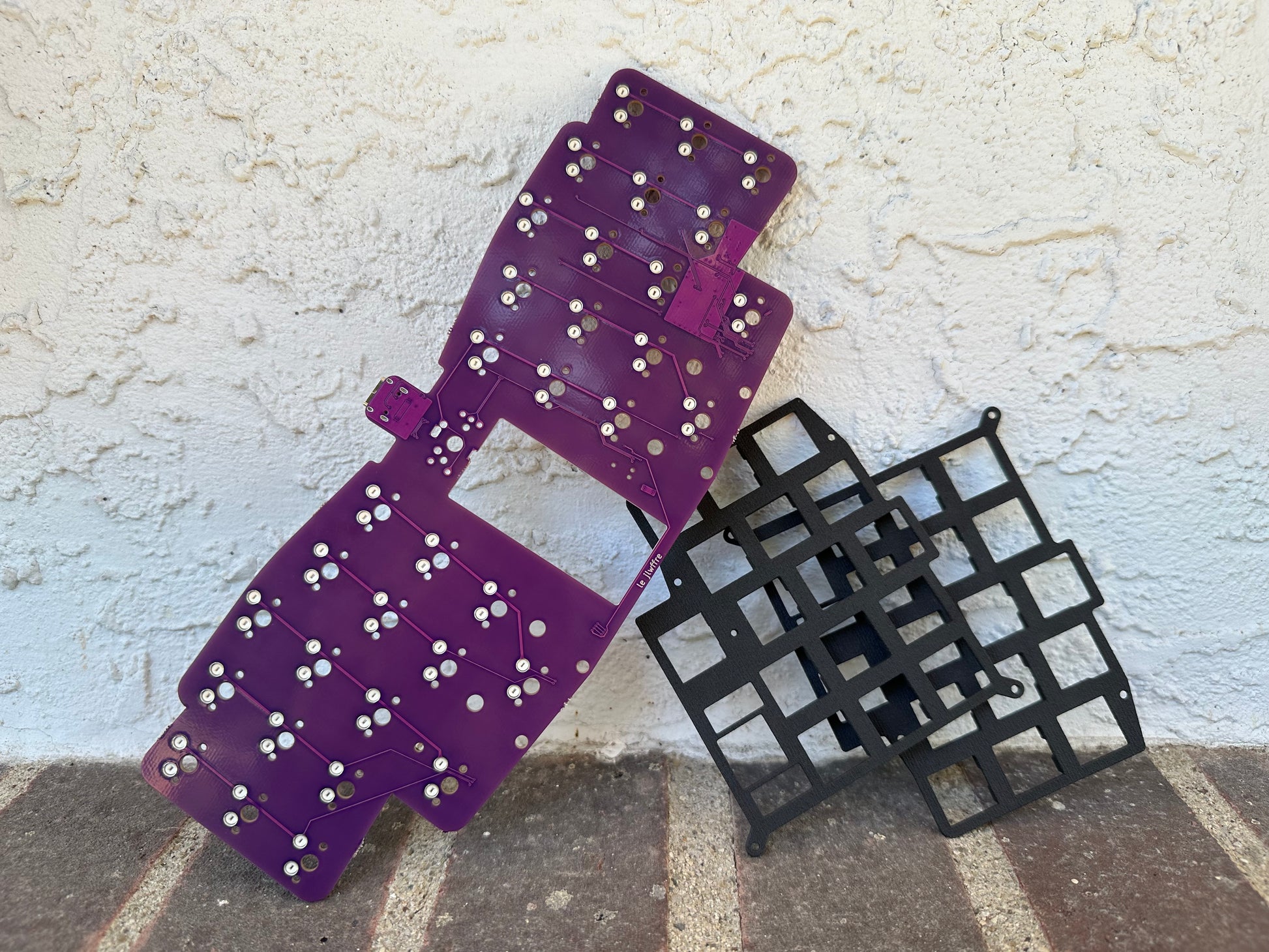

This item includes a PCB and a 3d printed SLS nylon thick plate with a special hole for the charging indicator. This item does NOT include a battery, switches, caps, case, ZMK knowledge, or ZMK support services.

le jlwffre is a BLE drop in replacement hotswap PCB for Le Chiffre. This PCB uses the same edge cuts as sporkus's STM32 MX/Alps PCB and is thus compatible with the same cases and plates. This PCB only supports the original 34 key Le Chiffre layout, with an option for a center switch or EC11 encoder.

The PCB is designed for a HAC-006 (Nintendo Switch Joycon) battery, and the female connector is already assembled on the PCB. It should lead to an estimated battery life of up to 8 months (according to ZMK power profiler). The name for the PCB was generously supplied by honorless.

The PCB will run ZMK firmware that can be flashed via a UF2 mass-storage-device bootloader. Double-tapping the reset button (or using keybinds, once ZMK is running) will send the device to bootloader. Then simply copy and paste your firmware .uf2 file into the storage device drive that appears on your computer.

To access the firmware source to customize your keymap, please click: FIRMWARE

To complete this build, you will need:

• 34-35 of your favorite switches and caps
• an encoder, if desired (for maximal battery life, use a detented encoder with resting state high)
• a case, if desired
• a battery (HAC-006 Nintendo Joycon replacement battery), if wishing to use this PCB wirelessly. You can find these on Amazon pretty easily.
